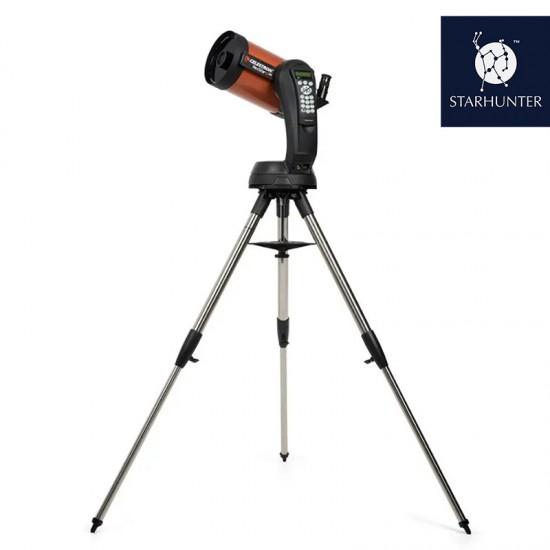

NexStar 6SE Computerized Telescope

Advanced Features Let the NexStar SE Grow with You The NexStar SE is compatible with all the high-tech accessories advanced users love. Provide GPS coordinates to your telescope with SkySync, or add automatic alignment functionality with StarSense AutoAlign. For planetary imaging, pair your NexStar 6SE with one of our Skyris cameras. Or, experiment with wide-field deep sky astroimaging by replacing the telescope’s secondary mirror with a DSLR or astronomical CCD camera with a Fastar/HyperStar lens assembly. From your first observing session and for years to come, the NexStar SE is your trusted companion. Manufacturer part number: 11068 Specifications Optical Tube Info

Optical Design: Schmidt-Cassegrain

Aperture: 150mm (5.91")

Focal Length: 1500mm (59")

Focal Ratio: f/10

Focal Length of Eyepiece 1: 25mm (.98")

Magnification of Eyepiece 1: 60x

Finderscope: StarPointer™ red dot finderscope

Star Diagonal: 1.25" Star Diagonal

Optical Tube: Aluminum

Highest Useful Magnification: 354x

Lowest Useful Magnification: 21x

Limiting Stellar Magnitude: 13.4

Resolution (Rayleigh): 0.93 arc seconds

Resolution (Dawes): 0.77 arc seconds

Light Gathering Power (Compared to human eye): 459x

Secondary Mirror Obstruction: 56mm (2.2")

Secondary Mirror Obstruction by Diameter: 37%

Secondary Mirror Obstruction by Area: 14%

Optical Coatings: StarBright XLT

Optical Tube Length: 406mm (16")

Optical Tube Diameter: 181mm (7.1")

Optical Tube Weight: 8 lbs (3.6 kg)

Mount Info

Mount Type: Computerized Altitude-Azimuth Single Fork Arm

Instrument load capacity: 12 lbs (5.44 kg)

Height adjustment range (includes mount and tripod): 965.2mm - 1422.4mm (38" - 56")

Tripod leg diameter: 38.1mm (1.5") Stainless Steel

Mount Head Weight: 11 lbs (5 kg)

Accessory Tray: Yes

Tripod Weight: 9 lbs (4.08 kg)

Slew Speeds: 9 slew speeds - max speed 5°/second

Tracking Rates: Sidereal, Solar and Lunar

Tracking Modes: Alt-Az, EQ North and EQ South

GPS: N/A

Dovetail Compatibility: CG-5 dovetail

Number of Auxiliary Ports: 1x AUX Port

Autoguide Port: Yes

USB Port: Yes, Hand Control input

Power Requirements: 8-AA batteries (not included) and 12 VDC-750 mA (Tip positive)

Motor Drive: DC servo motors

Alignment Procedures: SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, EQ North / EQ South

Alignment (EQ align requires an equatorial wedge)

Periodic Error Correction: No

Computerized Hand Control: Double line, 18 character Liquid Crystal Display with 19 fiber optic backlit LED buttons

NexStar+ Database: 40,000 objects, 200 user defined programmable objects. Enhanced information on over 200 objects

Software: Celestron Starry Night Special Edition Software and SkyPortal App

Total Kit Weight: 21 lbs (9.5 kg)

Included Items:

Optical tube

Single Fork Arm Mount

Tripod

Accessory Tray

Star Pointer Finderscope

NexStar+ Hand Control

25mm eyepiece

Star Diagonal

Solar Warning

• Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
• Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
• Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
